AM2011

AM2011

Now replaced by the AM2111

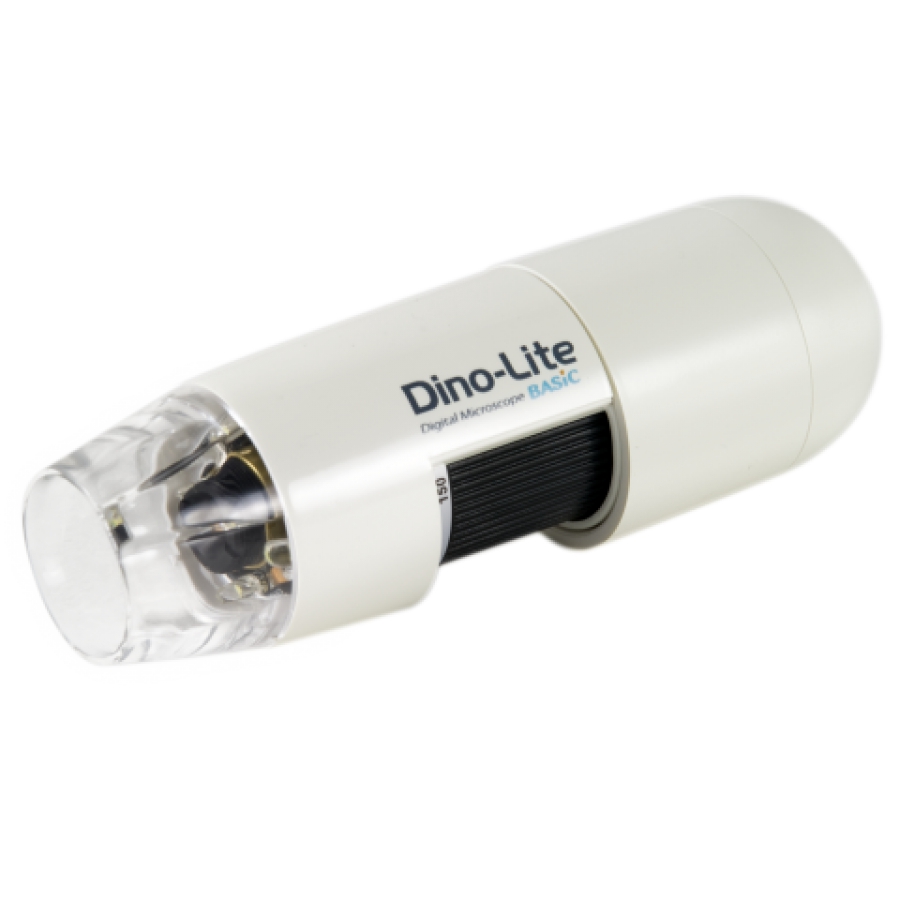

The AM2011 is the entry level Dino-Lite USB microscope and offers VGA resolution imaging (640x480) at 10x~60x and 200x magnification. The AM2011 features improved colour rendering and Mac OS support when compared to its predecessor the AM211. It is equipped with a high-speed USB 2.0 interface and provides 4 x white LED illumination (always on).

Additional Info

  • Resolution: 640x480pixels (VGA)
  • Magnification: 10x ~ 60x, 200x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 4
  • LED on/off switchable: No
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: No
  • Scroll lock: No
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: No
  • Calibration: No
  • Filter/Diffuser: None
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: The AM2011 is the latest version of the AM211 and AM311 models.
  • Field of View:
    M WD FOV (x) FOV (y)
    20 51.7 21.0 15.7
    30 24.1 14.0 10.5
    40 11.0 10.5 7.9
    50 3.8 8.4 6.3
    60 -0.6 7.0 5.2
    200 -0.4 2.1 1.6
    210 0.6 2.0 1.5
    220 1.7 1.9 1.4
    230 2.8 1.8 1.4

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
