AD4113TL

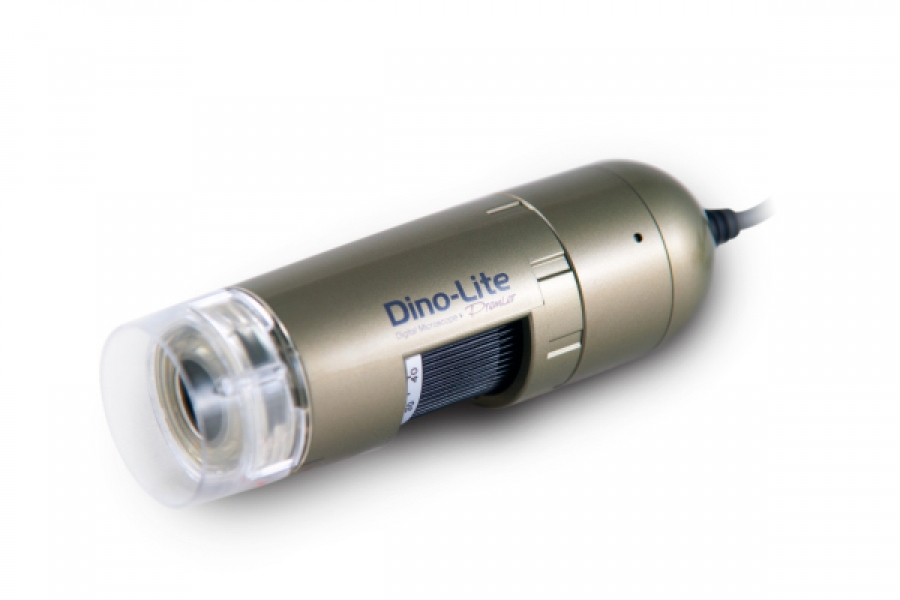

1.3M pixel USB microscope with exchangeable end caps and long working distance 20x-90x optics.

This long working distance model is the AD series version of the Dino-Lite AM413TL and offers the same professional grade features; 1.3M pixel image sensor, 8 x white LED illumination with software on/off, MicroTouch snapshot function and advanced software measurement with calibration. In addition the AD4113TL model has the benefit of exchangeable end caps and is supplied with both an open and closed cap, other specialist caps are available as accessories.

The Dino-Lite AD series long working distance models (AD...TL) feature exchangeable end caps allowing special function end caps to be fitted to the microscope. These models are able to take advantage of the FC-L-MA1 mirror angle cap which provides a 45 degree mirror for inspecting hard to access locations. The FC-L-TB1 tube extension cap is another AD series cap specific to the long working distance models and aids the inspection of small voids.

Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: 20x ~ 90x
  • Working Distance: Long Working Distance
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second, 15fps at 1.3M
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: Latest version of the AD413TL and AD4013TL models, now with magnification lock feature.
  • Field of View:
    M WD (with cap) WD (no cap) FOV (x) FOV (y)
    20 151.0 160.5 19.6 15.6
    30 101.0 110.4 13.0 10.4
    40 77.2 86.7 9.8 7.8
    50 64.1 73.6 7.8 6.3
    60 56.2 65.7 6.5 5.2
    70 51.3 60.8 5.6 4.5
    80 48.3 57.8 4.9 3.9
    90 46.6 56.1 4.3 3.5

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
