AF3113T

AF3113T

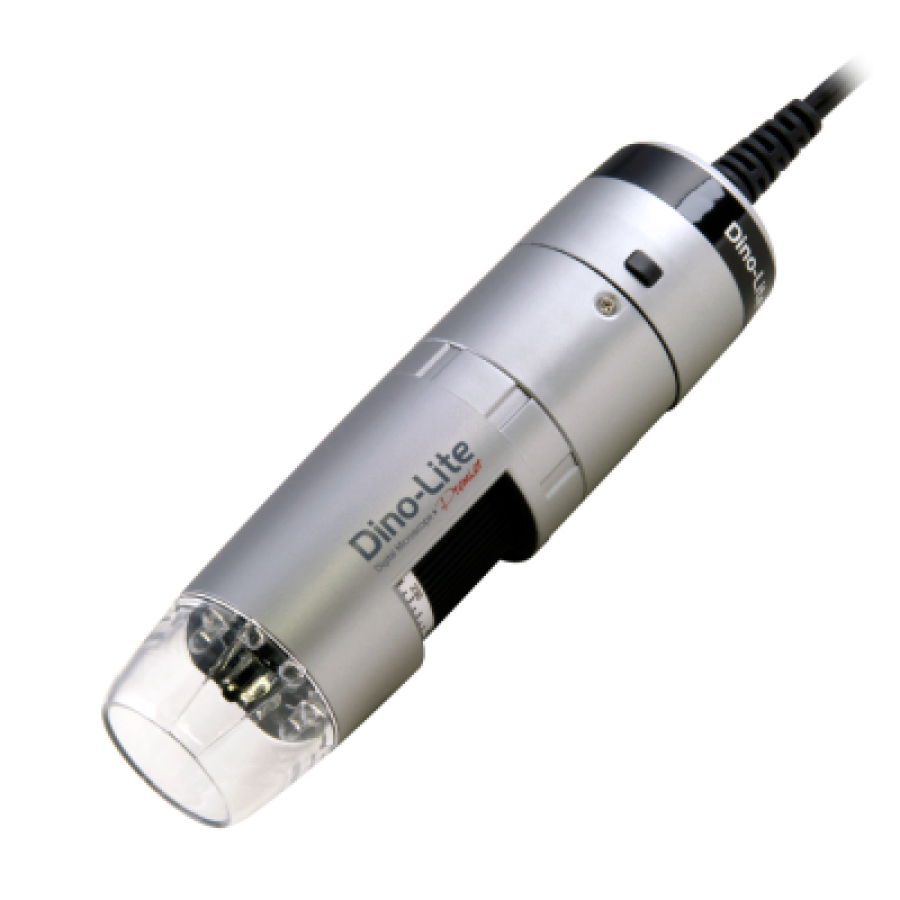

The Dino-Lite AF3113T is classed as a Dino-Lite Basic model but it is far from basic in its capabilities! With support for the latest wireless WF-20 Wi-Fi module (sold separately) this model is capable of either USB wired or Wi-Fi wireless operation* offering the user complete flexibility. Added to this the AF3113T supports the Dino-Lite software measurement capabilities and benefits from 8 switchable (on/off) LEDs.

These features along with the high quality optics, VGA (640x480) sensor and 20x~50x and 200x magnification capability make the AF3113T an excellent choice for budget sensitive applications that require multiple connection options and measurement but do not require the higher resolution that a 1.3M pixel, 5M pixel or 8M pixel Dino-Lite can offer.

* WF-20 Wireless module (sold separately) is required for wireless operation.

Additional Info

  • Resolution: 640x480pixels (VGA)
  • Magnification: 20x~50x, 200x
  • Working Distance: Standard
  • Interface: USB + WiFi
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: No
  • Scroll lock: No
  • Output: Picture, Video
  • Measurement: Yes
  • Calibration: No
  • Filter/Diffuser: IR cut-filter >650 nm
  • Compatibility: Windows 10/11, MacOS 10.4 or later
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: * WF-20 Wireless module (sold separately) is required for wireless operation.
  • Field of View:



    MAGNIFICATION RATEWORKING DISTANCEFIELD OF VIEW(X)FIELD OF VIEW(Y)DEPTH OF FIELD
    Listed values may differ slightly       Unit = mm
    20 51.7 21.0 15.7 8
    30 24.1 14.0 10.5 4
    40 11.0 10.5 7.9 2.5
    50 3.8 8.4 6.3 2
    60 -0.6 7.0 5.2 -
    200 -0.4 2.1 1.6 0.45
    210 0.6 2.0 1.5 -
    220 1.7 1.9 1.4 -
    230 2.8 1.8 1.4 0.42
  • Package contents:

    Microscope, Carry pouch, User manual, Quick guide
