AM8917MT4A

AM8917MT4A

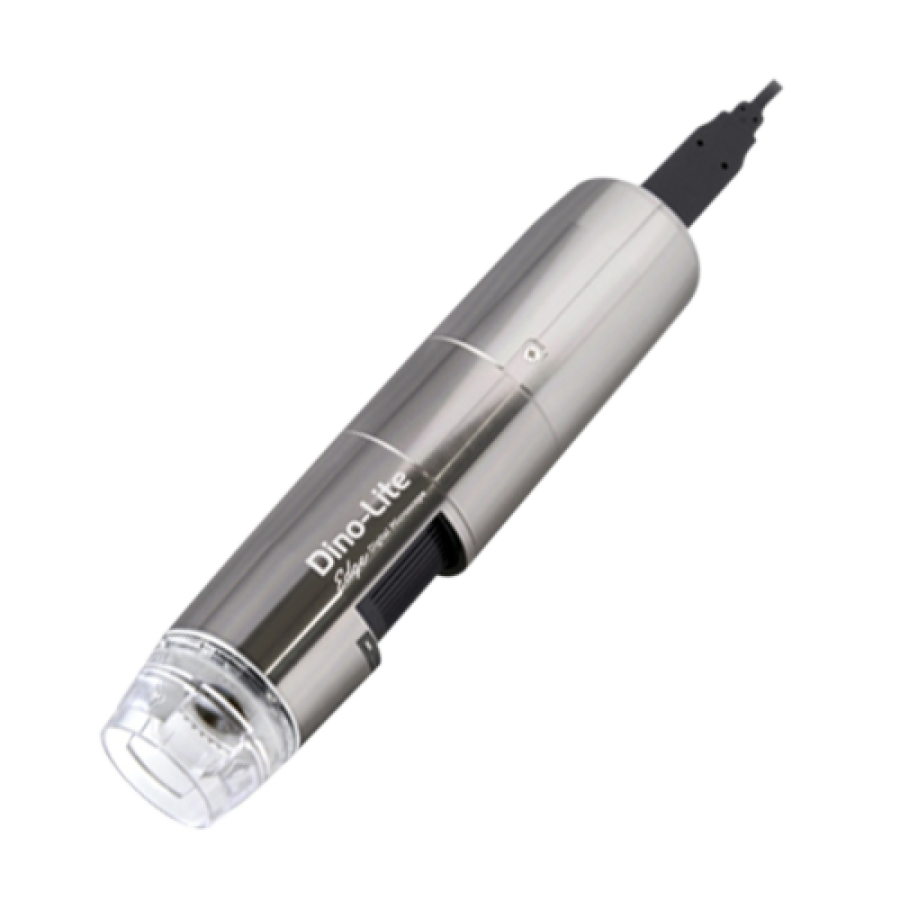

The Dino-Lite AM8917MT4A provides coaxial illumination capability at a magnification range of 400x-470x allowing the very smallest of details to be observed with exceptional clarity and contrast. The AM8917MT4A benefits from the innovative EDOF feature allowing the user to capture greater depth of field when necessary, particularly useful at such high magnification where the optical depth of field is very small.

As with other Dino-Lite coaxial models the coaxial illumination can be adjusted and even used in conjunction with the standard illumination for additional flexibility. The 8M pixel sensor and 16:9 image aspect ratio delivers increased detail, wider field of view (x) and outstanding colour fidelity as compared to other lower resolution Dino-Lite models.. With robust metal housing and mechanically retained USB cable the AM8917MT4A is ready to perform high magnification tasks in the most demanding environments. The AM8917MT4A offers coaxial illumination as well as wide range of advanced features including eFLC, AMR, EDOF/EDR and DPQ

8 megapixelMag 400 470exch-cap

FLCAMREDOFEDR

mag-lockmeasurement

*8M pixel (16:9) imaging is only currently available when using DinoCapture3.0 software for Windows OS

*Resolution restricted to 6M pixel (2880 x 2160) with DinoXcope software for MacOS

*EDOF/EDR/DPQ functions only available in Windows OS

Additional Info

  • Resolution: 3840x2160pixels (8MP)
  • Magnification: 400x ~ 470x
  • Working Distance: Contact
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Full aluminium alloy body
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows 10/11, MacOS 10.4 or later
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special:

    Coaxial Illumination Capability

    Custom USB cable with locking screw mechanism
  • Field of View:



    Magnification Rate Working Distance8 Field of View(x) Field of View(y) Depth of Field
    Listed values may differ slightly  *Without front cap     Unit = mm
    415 8.6 1.46 0.82 0.04
    420 8.6 1.44 0.81 0.04
    430 8.5 1.41 0.79 0.04
    440 8.5 1.38 0.78 0.04
    450 8.4 1.35 0.76 0.04
    460 8.4 1.32 0.74 0.04
  • Package contents:

    Microscope, Carry pouch, User manual, Quick guide, Calibration target

    Front cover box containing N3C-C (Close Cap), N3C-E (Extended Open Cap), N3C-O (Open Cap)

    Type-C to Type-C cable (detachable, w/screw lock), Type-C to Type-A cable (detachable, w/screw lock)
Published in Dino-Lite Edge+ 8MP
