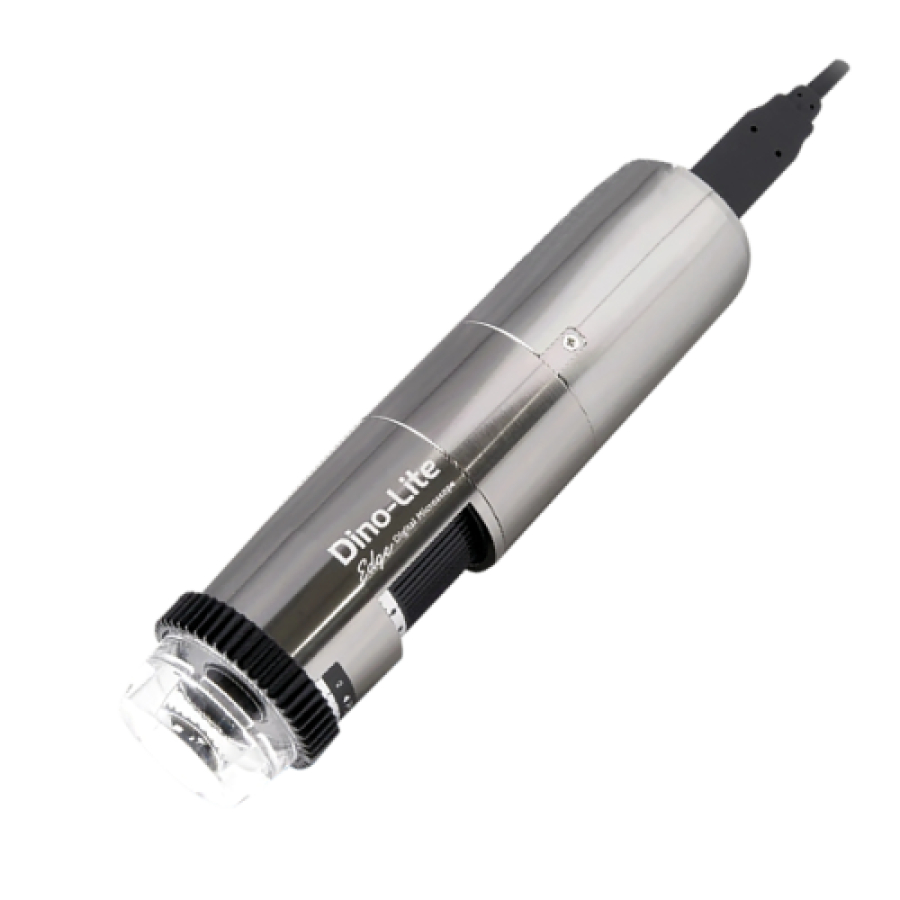

The Dino-Lite AM8917MZTL is the highest performing model at 10x-140x magnification range with long working distance optics. The 8M pixel sensor and 16:9 image aspect ratio delivers increased detail, wider field of view (x) and outstanding colour fidelity as compared to other lower resolution Dino-Lite models. With robust metal housing and mechanically retained USB cable the AM8917MZTL is ready to perform a wide range of tasks in the most demanding environments where additional working distance is required. The AM8917MZTL offers a polarizer as well as wide range of advanced features including eFLC, AMR, EDOF/EDR and DPQ
Also available as AM8517MZTL (no EDOF/EDR/DPQ features) and as AM8117MZTL (no AMR/EDOF/EDR/DPQ features)
*8M pixel (16:9) imaging is only currently available when using DinoCapture3.0 software for Windows OS
*Resolution restricted to 6M pixel (2880 x 2160) with DinoXcope software for MacOS
*EDOF/EDR/DPQ functions only available in Windows OS
| Magnification Rate | Working Distance8 | Field of View(x) | Field of View(y) | Depth of Field |
|---|---|---|---|---|
| Listed values may differ slightly | *Without front cap | Unit = mm | ||
| 10 | 237.5 | 60.69 | 34.14 | 25.82 |
| 20 | 115.3 | 30.35 | 17.07 | 6.89 |
| 30 | 75.9 | 20.23 | 11.38 | 3.50 |
| 40 | 57.3 | 15.17 | 8.53 | 2.23 |
| 50 | 47.0 | 12.14 | 6.83 | 1.59 |
| 60 | 40.8 | 10.11 | 5.69 | 1.22 |
| 70 | 36.9 | 8.67 | 4.88 | 0.98 |
| 80 | 34.6 | 7.59 | 4.27 | 0.82 |
| 90 | 33.2 | 6.74 | 3.79 | 0.70 |
| 100 | 32.6 | 6.07 | 3.41 | 0.61 |
| 110 | 32.4 | 5.52 | 3.10 | 0.53 |
| 120 | 32.7 | 5.06 | 2.85 | 0.48 |
| 130 | 33.2 | 4.67 | 2.63 | 0.43 |
| 140 | 33.9 | 4.34 | 2.44 | 0.39 |
Microscope, Carry pouch, User manual, Quick guide, Calibration target
Front cover box containing N3C-C (Close Cap), N3C-D (Diffuser Cap), N3C-D2 (Opal Diffuser Cap), N3C-E (Extended Open Cap), N3C-L (Long Cap), N3C-O (Open Cap), N3C-S (Sidelight Cap)
Type-C to Type-C cable (detachable, w/screw lock), Type-C to Type-A cable (detachable, w/screw lock)
