AM4115T-GRFBY

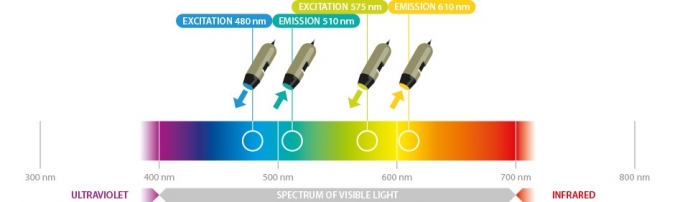

The Dino-Lite AM4115T-GRFBY digital microscope is optimized for research and viewing fluorescent objects by using 480nm and 575nm excitation LEDs. It has a 510nm and 610nm emission filter that is designed to observe a wide range fluorophores with applications in developmental biology, pathology, and anatomy.


USBMeasurementMag-20-220

mag-lockres-1-3Fluor-480-575

Stand-W-distance


The AM4115T-GRFBY has the capability of switching the light source from the 480nm excitation LEDs to the 575nm LED, which is convenient for dual color stained fluorescence. All of these factors make the AM4115T-GRFBY the smallest fluorescence microscope in the world, capable of many applications and visualizing a vast range of fluorescence.

»  Special models available on request.

Additional Info

  • Resolution: 640x480pixels (VGA)
  • Magnification: 10x ~ 70x, 200x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 4+4
  • LED on/off switchable: Yes
  • LED color: Yellow
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
  • Field of View:



    Magnification Rate Working Distance 1 Working Distance 2* Field of View(x) Field of View(y) Depth of Field
    Listed values may differ slightly
      * Without front cap     Unit = mm
    20 52.7 60.2 19.5 15.6 2.5
    30 26.0 33.5 13.0 10.4 1.8
    40 13.4 20.9 9.8 7.8 1.5
    50 6.4 13.9 7.8 6.3 -
    60 2.2 9.7 6.5 5.2 -
    70 - 7.1 5.6 4.5 1.0
    80 - 5.5 4.9 3.9 -
    90 - 4.5 4.3 3.5 -
    100 - 4.1 3.9 3.1 -
    110 - 4.0 3.6 2.8 -
    120 - 4.1 3.3 2.6 -
    130 - 4.5 3.0 2.4 -
    140 - 5.0 2.8 2.2 -
    150 - 5.6 2.6 2.1 -
    160 - 6.3 2.4 2.0 -
    170 - 7.1 2.3 1.8 -
    180 - 8.0 2.2 1.7 -
    190 - 8.9 2.1 1.6 -
    200 - 9.9 2.0 1.6 -
    210 - 10.9 1.9 1.5 -
    220 - 11.9 1.8 1.4 0.1
  • Special Light: Special Light
  • Package contents: Microscope, Carry pouch, Software CD, Calibration target, User manual
