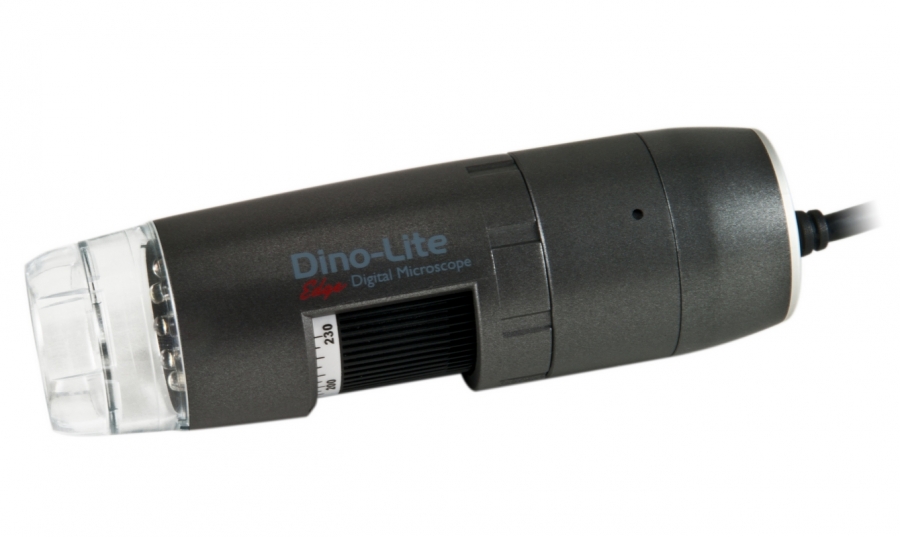

The Dino-Lite Edge models provide superior image quality and a high level of flexibility due to the adaptable cap design.
» Also available as LWD (model AM4115TL-FUW)
The UW series has two types of LED lights that are switchable between white and UV light. This model has a filter to filter out the returning UV light so that an image with natural colors can be obtained.
The Dino-Lite Edge models provide superior image quality and a high level of flexibility due to the adaptable cap design.
» Also available as LWD (model AM4115TL-FUW)
Magnification Rate | Working Distance 1 | Working Distance 2* | Field of View(x) | Field of View(y) | Depth of Field |
---|---|---|---|---|---|
Listed values may differ slightly | * Without front cap | Unit = mm | |||
20 | 52.7 | 60.2 | 19.5 | 15.6 | 2.5 |
30 | 26.0 | 33.5 | 13.0 | 10.4 | 1.8 |
40 | 13.4 | 20.9 | 9.8 | 7.8 | 1.5 |
50 | 6.4 | 13.9 | 7.8 | 6.3 | - |
60 | 2.2 | 9.7 | 6.5 | 5.2 | - |
70 | - | 7.1 | 5.6 | 4.5 | 1.0 |
80 | - | 5.5 | 4.9 | 3.9 | - |
90 | - | 4.5 | 4.3 | 3.5 | - |
100 | - | 4.1 | 3.9 | 3.1 | - |
110 | - | 4.0 | 3.6 | 2.8 | - |
120 | - | 4.1 | 3.3 | 2.6 | - |
130 | - | 4.5 | 3.0 | 2.4 | - |
140 | - | 5.0 | 2.8 | 2.2 | - |
150 | - | 5.6 | 2.6 | 2.1 | - |
160 | - | 6.3 | 2.4 | 2.0 | - |
170 | - | 7.1 | 2.3 | 1.8 | - |
180 | - | 8.0 | 2.2 | 1.7 | - |
190 | - | 8.9 | 2.1 | 1.6 | - |
200 | - | 9.9 | 2.0 | 1.6 | - |
210 | - | 10.9 | 1.9 | 1.5 | - |
220 | - | 11.9 | 1.8 | 1.4 | 0.1 |
