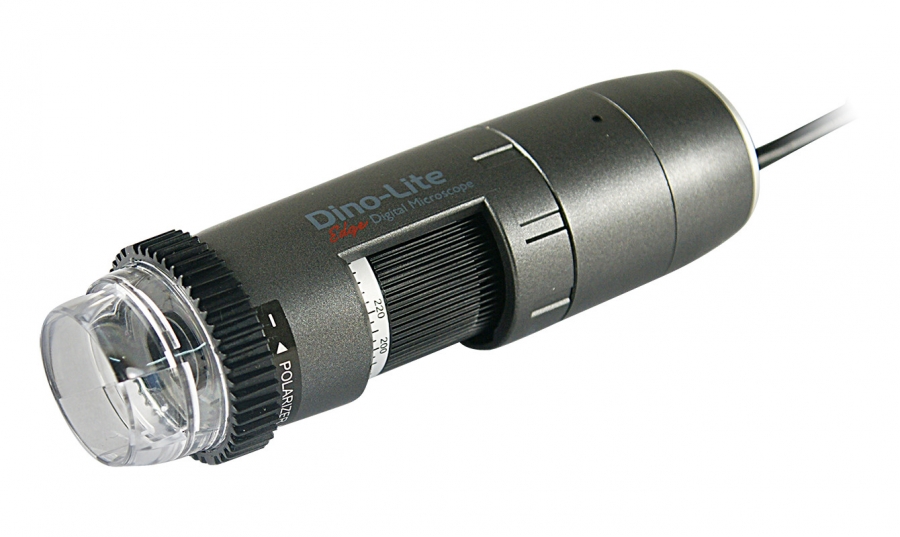

The Dino-Lite AM5216ZT is one of the latest Edge series D-sub microscopes to feature improved optics for sharper images. It easily allows for the observation of objects at touch proximity within its wide magnification range (20X~220X.) Capable of 60 frames per second at 720p resolutions, this model is ideal for observing specimens effectively with minimum lag while in motion.

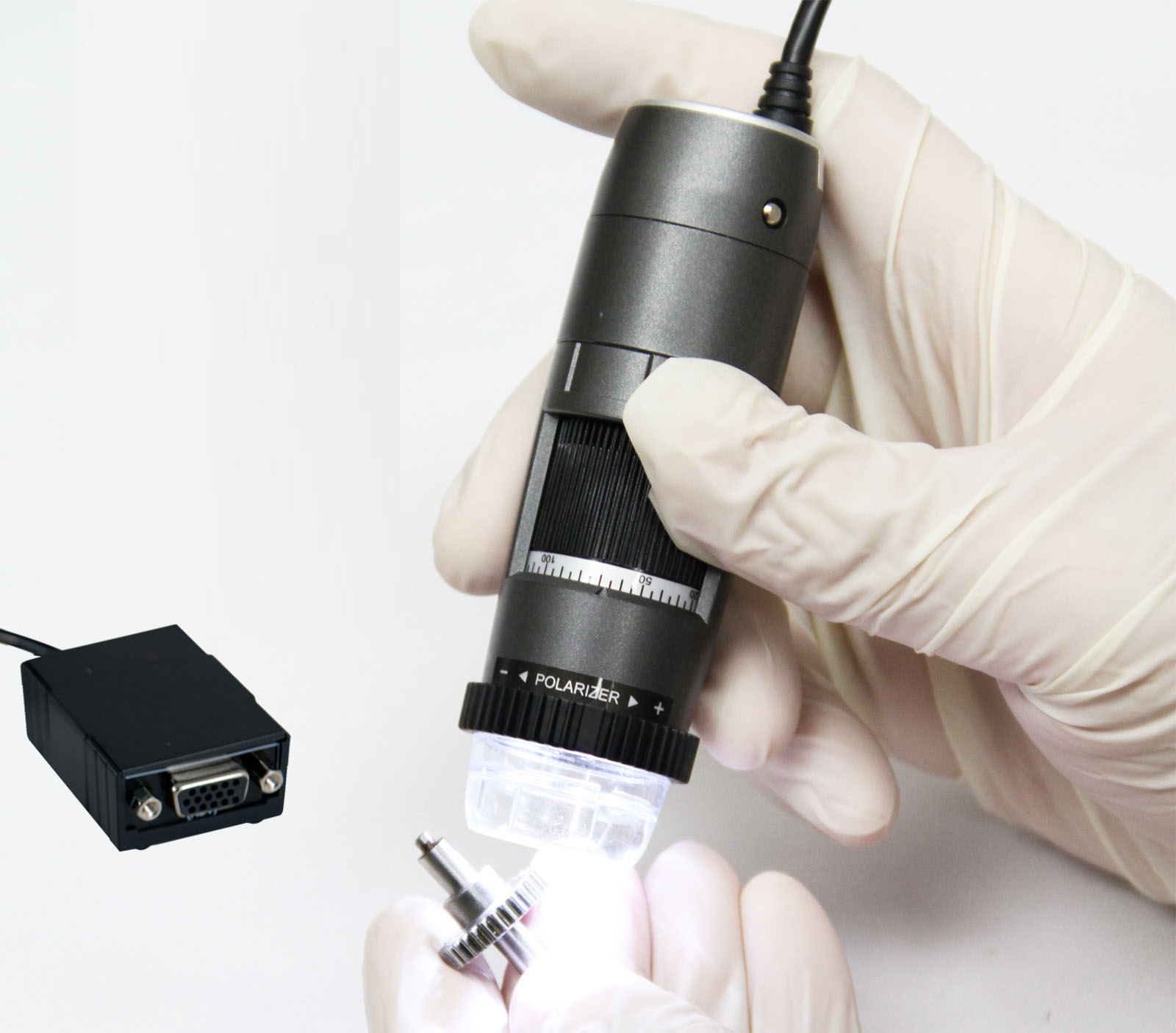

It comes with an adjustable polarizer to help suppress unwanted glare or reflections. With this feature, it is suitable for a wide range of applications including the inspection, repair and assembly involving reflective or translucent materials, with examples such as soldering, quality inspection, or jewelry fabrication.

The MicroTouch button on this model is configured to quickly freeze video frames with a single tap of a finger, or to control on/off the LEDs. The scroll lock on the magnification dial is able to secure the dial and fix the focus and magnification, which can be helpful to prevent unintentional rotations of the dial in some applications.

The AM5216ZT does not require a computer or bundled software to operate, but instead functions through a VGA monitor connected via the D-sub interface. Thanks to the simplicity of system configuration and minimized maintenance requirement, the largely reduced overall system and operating cost together with the high image quality makes it ideal for use beyond industrial application.

Additional Info

  • Resolution: HD 720p
  • Magnification: 10-140x
  • Working Distance: Long Working Distance
  • Interface: VGA (D-SUB) Connector
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: Yes
  • Measurement: No
  • Calibration: No
  • Filter/Diffuser: None
  • Compatibility: Not applicable
  • Software: None
  • JPEG Codec: None
  • Special: None
  • Package contents: Microscope, Carry pouch, Power adapter, Front cover box, User manual
