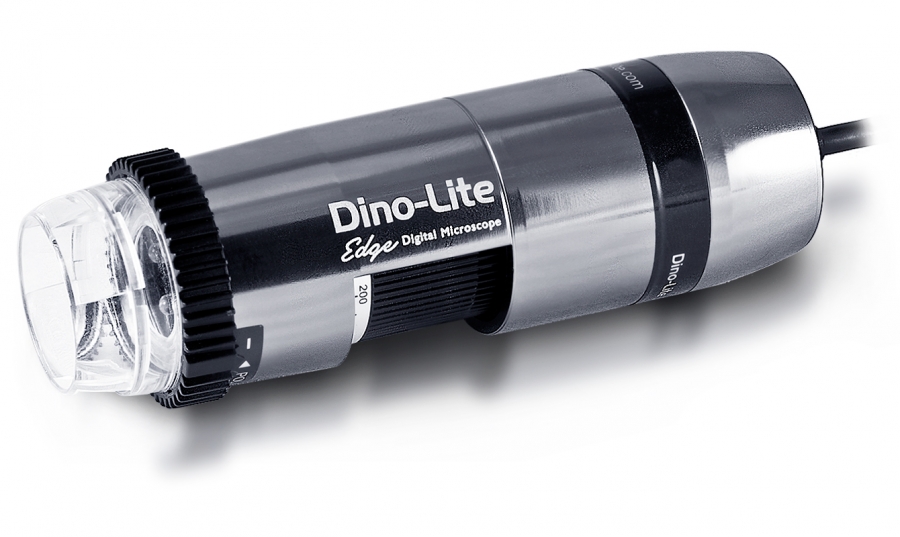

AM7515MZT - Edge

With the use of the latest, cutting-edge optics, a brand new 5 megapixel sensor and several special features such as flexible LED control (FLC), Automatic Magnification Reading (AMR) and full aluminum body, the Dino-Lite AM7515MZT is a marvel of technology and the best choice for the high-demanding professional. The Dino-Lite AM7515MZT offers superb image quality and color reproduction in a robust, compact and appealing housing.


USBAMRMag-20-220

Metal5 megapixel8-leds

PolariserFLCexch-cap


The AM7515MZT is part of the universal range and with its standard working distance and wide magnification range from 20 – 220x, it is suitable for a wide range of applications. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc. The AMR function is of particular importance when the measurement functions are frequently used.

The main features of the AM7515MZT are:
5 Megapixel Edge sensor, 20-220x magnification, integrated polarizer, aluminum housing, Automatic Magnification Reading (AMR), Flexible LED Control (FLC), extensive measurement functions, calibration, exchangeable front caps and more.



Additional Info

  • Resolution: 2592x1944pixels (5MP)
  • Magnification: 20-220x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: IR cut-filter >650 nm
  • Compatibility: Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
  • Field of View:



    Magnification Rate Working Distance 1 Working Distance 2* Field of View(x) Field of View(y) Depth of Field
    Listed values may differ slightly
      * Without front cap     Unit = mm
    20 52.7 60.2 19.5 15.6 2.5
    30 26.0 33.5 13.0 10.4 1.8
    40 13.4 20.9 9.8 7.8 1.5
    50 6.4 13.9 7.8 6.3 -
    60 2.2 9.7 6.5 5.2 -
    70 - 7.1 5.6 4.5 1.0
    80 - 5.5 4.9 3.9 -
    90 - 4.5 4.3 3.5 -
    100 - 4.1 3.9 3.1 -
    110 - 4.0 3.6 2.8 -
    120 - 4.1 3.3 2.6 -
    130 - 4.5 3.0 2.4 -
    140 - 5.0 2.8 2.2 -
    150 - 5.6 2.6 2.1 -
    160 - 6.3 2.4 2.0 -
    170 - 7.1 2.3 1.8 -
    180 - 8.0 2.2 1.7 -
    190 - 8.9 2.1 1.6 -
    200 - 9.9 2.0 1.6 -
    210 - 10.9 1.9 1.5 -
    220 - 11.9 1.8 1.4 0.1
  • Package contents: Microscope, Carry pouch, Software CD, Calibration target, User manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-Extension cap, N3C-L- Long cap, N3C-S- Side light cap
