AM5116ZT

AM5116ZT

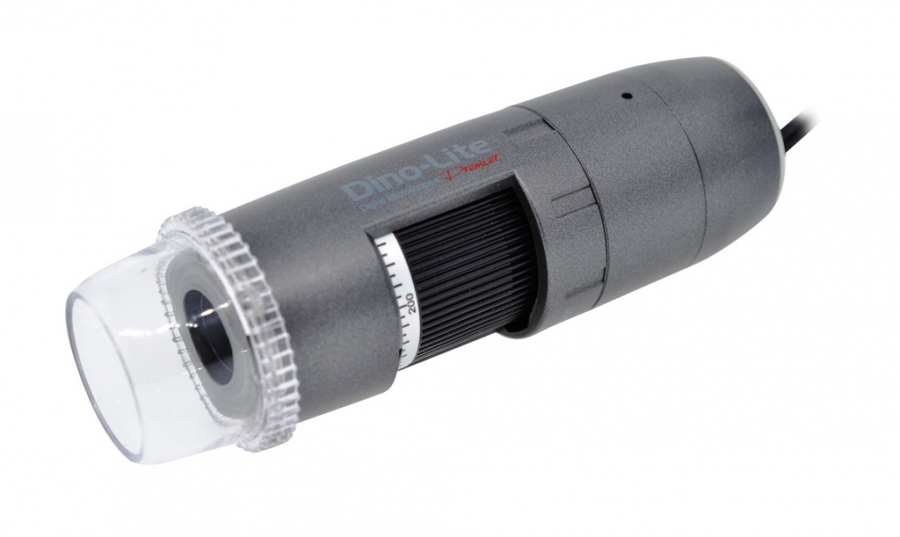

The Dino-Lite AM5116ZT connects directly to a VGA screen via a VGA (D-SUB) connector. It offers a high frame rate of up to 60fps at 1024x768 (XGA) resolution, resulting in crystal clear images.

  • Direct VGA connection
  • With magnification lock
  • 10-70, 200x Magnification
  • Polarizer (anti-reflection) & High 1024x768 resolution

VGA-connHigh-speedMag-10-70-200

mag-lockRes-10248-leds

PolariserIStand-W-distance

The AM5116ZT is the ideal choice in situations, where real time images are vital, such as working on PCB's or other miniature objects. By tapping the Microtouch sensor on the microscope, the image can be frozen for inspection of important details and by pressing the Microtouch sensor for 2 seconds the LEDs can be switched on and off. The built-in adjustable polarizer reduces glare and reflection on shiny objects, such as metal surfaces, electronics, plastics etc.



Additional Info

  • Resolution: 1024x768pixels
  • Magnification: 10x ~ 70x, 200x
  • Working Distance: Standard
  • Interface: VGA (D-SUB) Connector
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Video
  • Video Frame Rate: Up to 60 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: Built-in polarizer
  • Compatibility: Not applicable
  • Software: None
  • JPEG Codec: None
  • Special: None
  • Field of View:



    Magnification Rate Working Distance Field of View(x) Field of View(y) Depth of Field
    Listed values may differ slightly       Unit = mm
    20 48.7 19.8 14.9 3.6
    30 21.7 13.2 9.9 1.9
    40 9.0 9.9 7.4 -
    50 1.9 7.9 5.9 0.88
    60 -2.3 6.6 5.0 -
    220 -0.1 1.8 1.4 0.20
    230 1.0 1.7 1.3 -
    240 2.1 1.7 1.2 -
