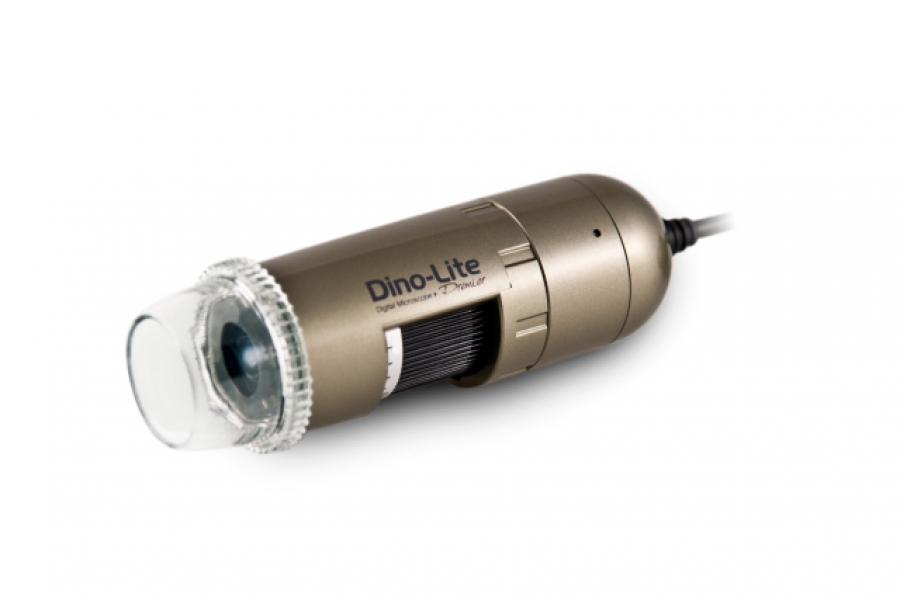

AM4113ZTL

The AM4113ZTL is a special function model with long working distance optics and adjustable polarisation. The 20x - 90x magnification range provides up to 15cm of working distance at 20x and 5cm at 90x making the unit ideal for applications where extended working distance is required such as repair, rework and assembly tasks. The adjustable polarisation feature allows the user to control reflection and glare from the sample. As a Dino-Lite Pro model the AM4113ZTL features 1.3M pixel resolution, advanced software measurement features and MicroTouch snapshot function as standard.

The AM4113ZTL is the latest Dino-Lite Pro long working distance model and builds on the success of the AM4113TL with the added benefit of adjustable polarisation. Featuring the latest image sensor (with improved colour rendering) and new housing with magnification scroll lock function the AM4113ZTL represents the very latest in Dino-Lite long working distance models.

Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: 20x ~ 90x
  • Working Distance: Long Working Distance
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second, 15fps at 1.3M
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: Built-in polarizer
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: Adjustable polariser for reflection and glare reduction.
  • Field of View:
    M WD FOV (x) FOV (y)
    20 151.0 19.6 15.6
    30 101.0 13.0 10.4
    40 77.2 9.8 7.8
    50 64.1 7.8 6.3
    60 56.2 6.5 5.2
    70 51.3 5.6 4.5
    80 48.3 4.9 3.9
    90 46.6 4.3 3.5

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
