AM4013MZT4

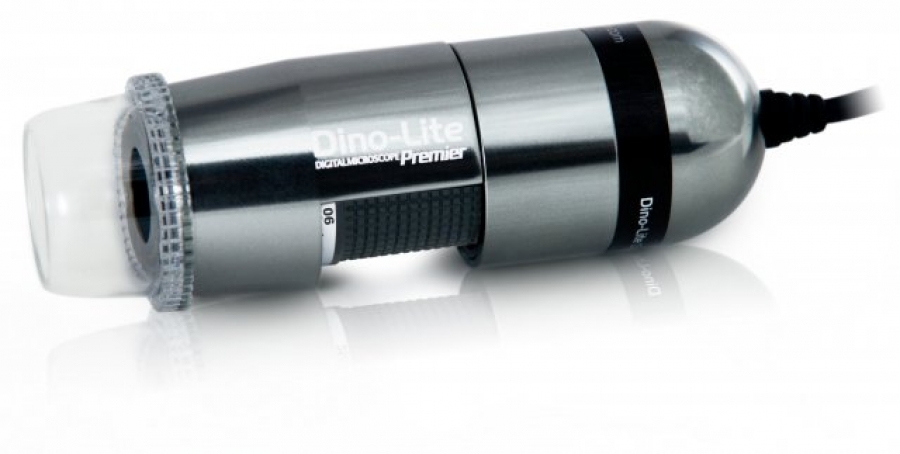

The AM4013MZT4 is the metal body version of the 400x AM413ZT4 and offers the same advanced features with the additional benefit of an aluminum alloy housing for enhanced durability.

Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: 400x ~ 470x
  • Working Distance: Contact
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Full aluminium alloy body
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: No
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second, 15fps at 1.3M
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: Built-in polarizer
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
  • Field of View:
    M WD FOV (x) FOV (y)
    380 0.1 1.03 0.82
    390 1.1 1 0.8
    400 2.0 0.98 0.78
    410 3.0 0.95 0.76
    420 4.0 0.93 0.74
    430 5.0 0.91 0.73
    440 6.0 0.89 0.71
    450 6.9 0.87 0.7
    460 7.9 0.85 0.68

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
