AM4013MZTL

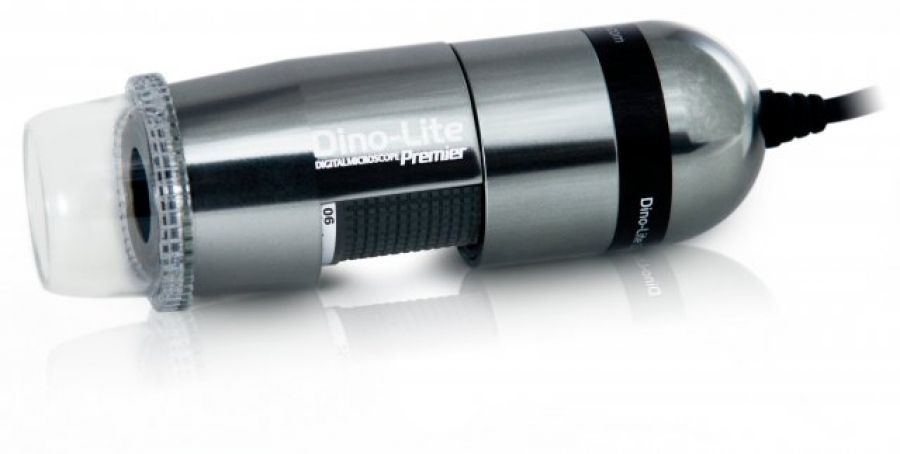

The AM4013MZTL is a polarizing, metal body version of the long working distance AM413TL and offers the same advanced features with the additional benefit of an aluminum alloy housing for enhanced durability. The advanced polarization feature allows reflection and glare to be controlled and makes this model the ideal choice when examining materials that are reflective or which generate glare such as glass, plastics and metals.

Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: 20x ~ 90x
  • Working Distance: Long Working Distance
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Full aluminium alloy body
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: No
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second, 15fps at 1.3M
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: Built-in polarizer
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
  • Field of View:
    M WD FOV (x) FOV (y)
    20 151.0 19.6 15.6
    30 101.0 13.0 10.4
    40 77.2 9.8 7.8
    50 64.1 7.8 6.3
    60 56.2 6.5 5.2
    70 51.3 5.6 4.5
    80 48.3 4.9 3.9
    90 46.6 4.3 3.5

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
