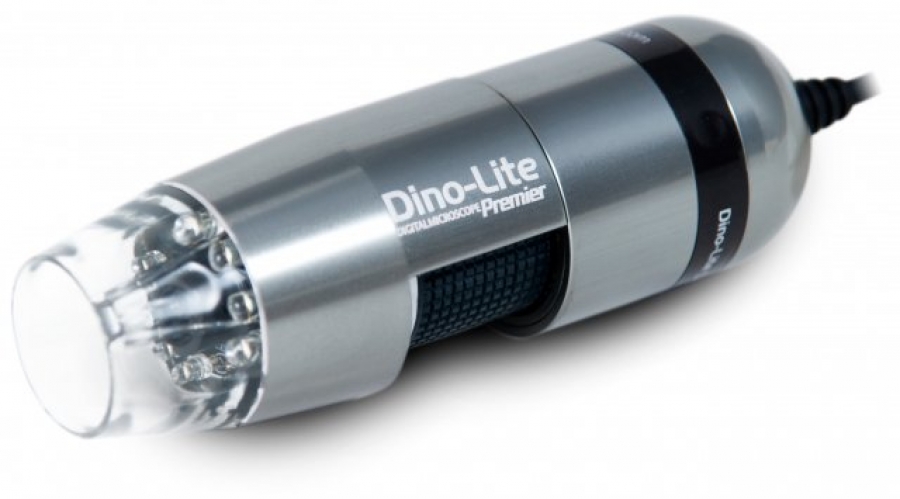

AM4013MT

The AM4013MT is the metal body version of the AM413T and offers the same advanced features with the additional benefit of an aluminum alloy housing for enhanced durability.

Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: 10x ~ 60x, 200x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Full aluminium alloy body
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: No
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second, 15fps at 1.3M
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
  • Field of View:
    M WD FOV (x) FOV (y)
    20 48.7 19.6 15.6
    30 21.7 13.0 10.4
    40 9.0 9.8 7.8
    50 1.9 7.8 6.3
    60 -2.3 6.5 5.2
    220 -0.1 1.8 1.4
    230 1.0 1.7 1.4
    240 2.1 1.6 1.3

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
