TrichoScope Wireless

TrichoScope Wireless

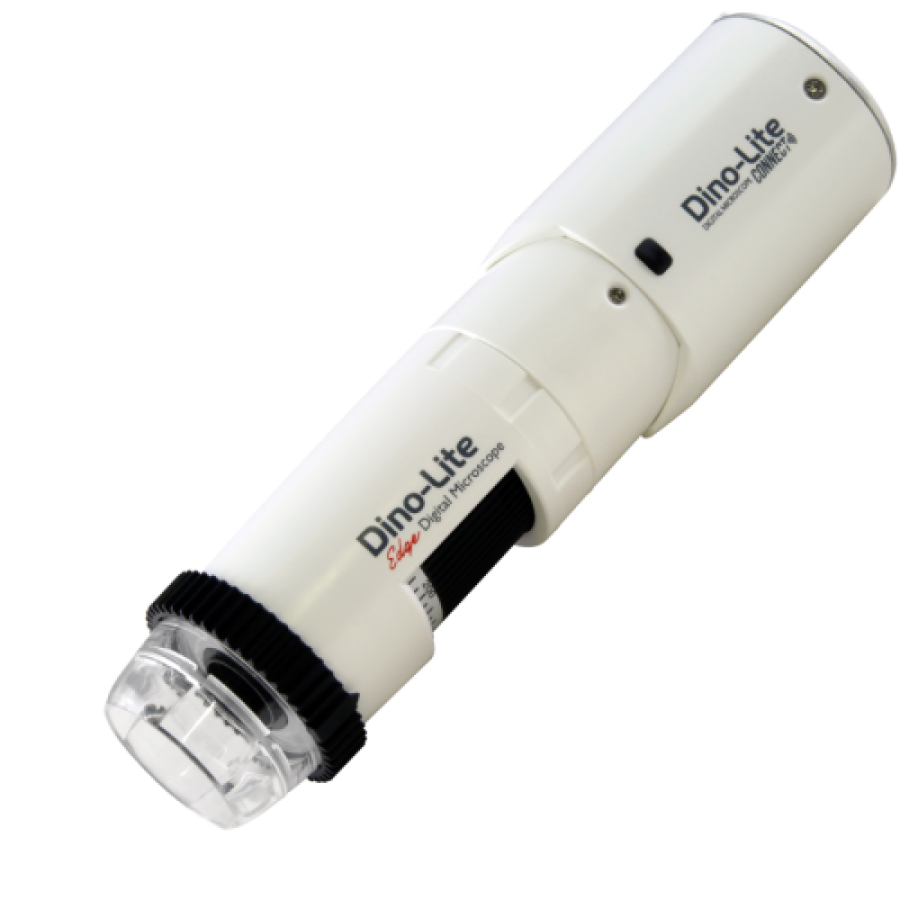

The Dino-Lite TrichoScope Wireless (MEDLW4HM) is the next generation of TrichoScope offering both wired and wireless operation out of the box. Adjustable polarisation and removable end caps further add to the flexibility offered by this model.

  • USB and Wi-Fi Capable
  • 1.3 Megapixel Resolution
  • Exchangeable End Caps
  • 20x-220x Magnification
  • Adjustable Polarizer & Flexible LED Control
  • Medical Device Class 1

WirelessUSBMag-20-220

mag-lockres-1-38-leds

PolariserIexch-cap

The 20x-220x optics of this model have been selected with trichology applications in mind and allow both hair and scalp features to be observed at high magnification with ease. Exchangeable end caps and the built-in polarizer (adjustable) allow the operator to tailor use and illumination for the most effective results.

Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: 20-220x
  • Working Distance: Standard
  • Interface: USB + WiFi
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: No
  • Calibration: No
  • Filter/Diffuser: Built-in polarizer
  • Compatibility: Windows 10/11, MacOS 10.4 or later
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special:



    Allows USB or Wi-Fi Operation

    Regulatory approval: Medical Device Class 1 – According to Directive 93/42/EEC modified 2007/47/EC
  • Package contents:



    Microscope, Carry pouch, User manual

    End Caps Supplied N3C-C (Closed), N3C-L (Extension)
Published in TrichoScope
