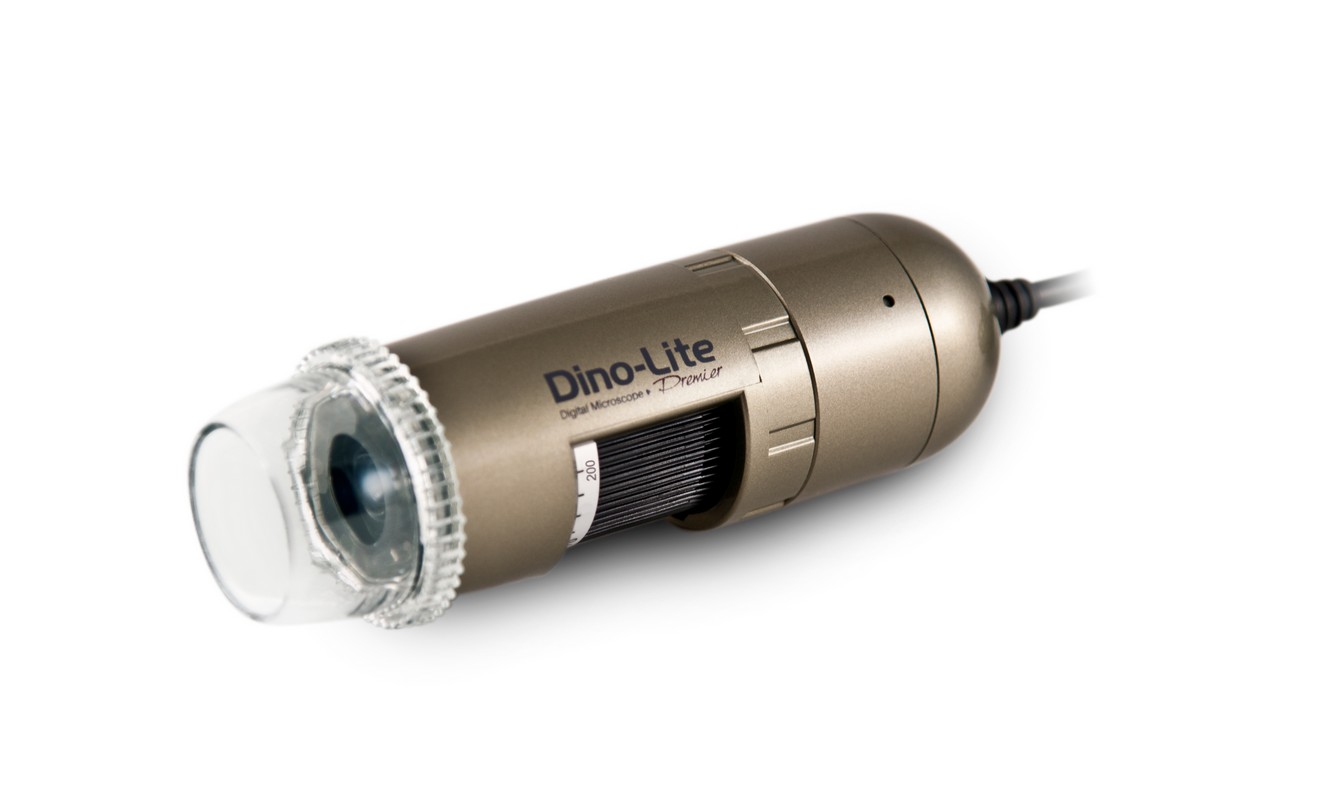

TrichoScope Polarizer

TrichoScope Polarizer

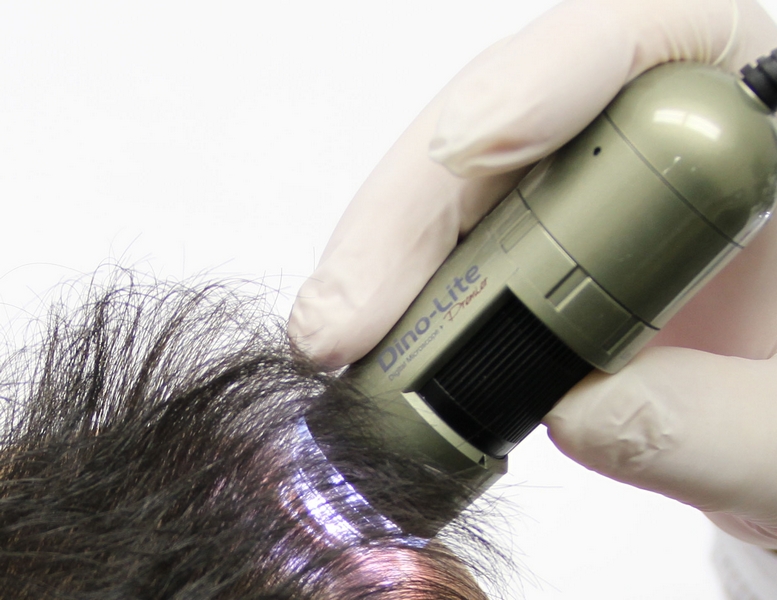

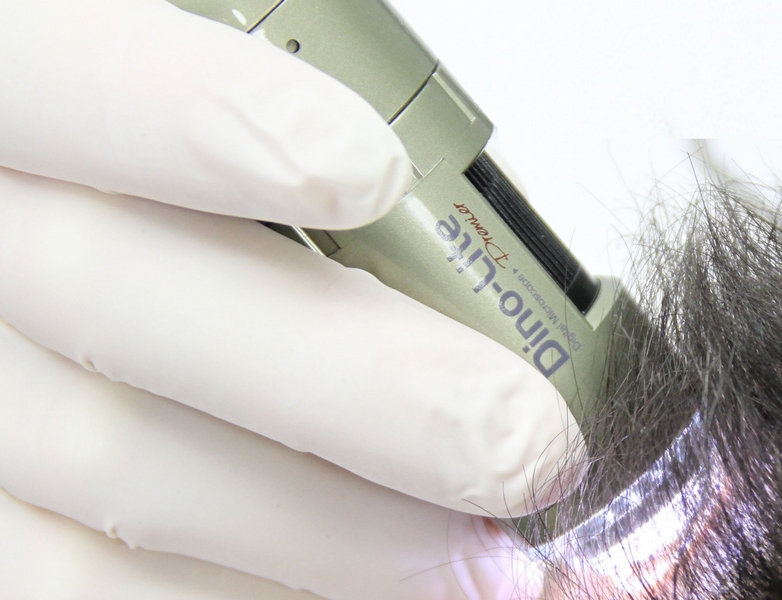

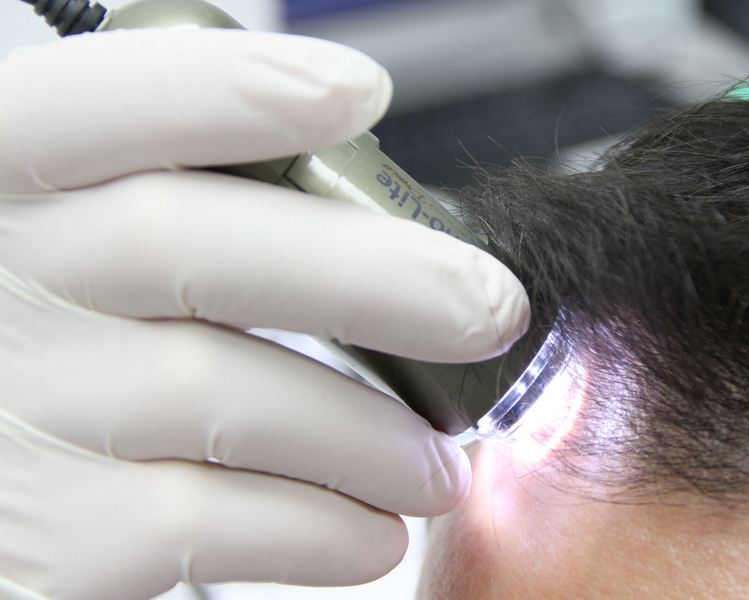

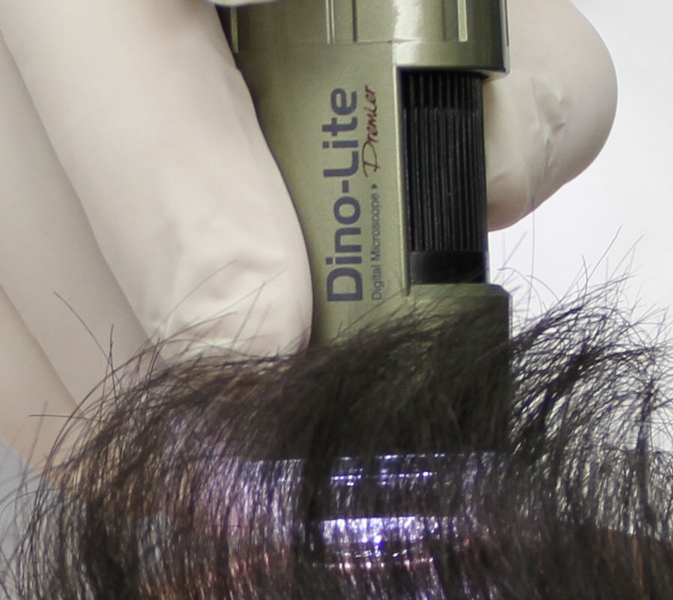

The Dino-Lite TrichoScope Polarizer (MEDL4HM) is a great instrument for the examination of the human scalp and for hair analysis, e.g. for hair loss research. With the high magnification of up to 200 times a single hair can be viewed with great detail. The built-in polarizer filter minimizes the glaring effect of the scalp/hair.

  • 1.3 Megapixel resolution & Up to 200x magnification
  • Pro model for Trichoscopy
  • Polarizer
  • Medical Device Class 1


USB-2Mag-10-70-200

mag-lockres-1-38-leds

PolariserI

» Also available: MEDL4HMA TrichoScope, 1.3 Megapixel without polarizer
» Also available: MEDL4HM4 TrichoScope Polarizer 470, 1.3 Megapixel with 400~470x Magnification

Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: 10x ~ 70x, 200x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: No
  • Calibration: No
  • Filter/Diffuser: Built-in polarizer
  • Compatibility: Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: Medical Device Class 1 – According to Directive 93/42/EEC modified 2007/47/EC
  • Package contents: Microscope, Carry pouch, Software CD, ZT-Z-CC1 Cap closure, Calibration target, User manual
Published in TrichoScope
