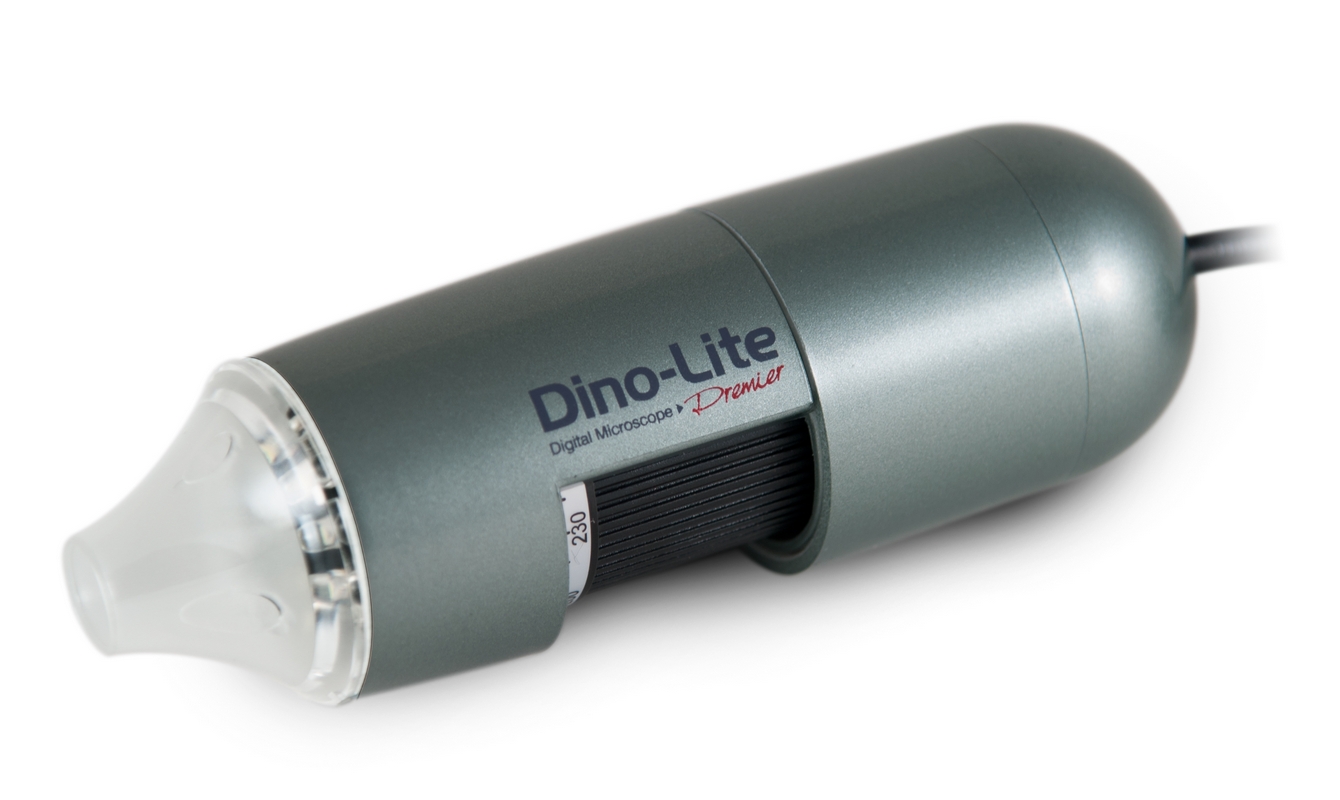

TrichoScope Basic

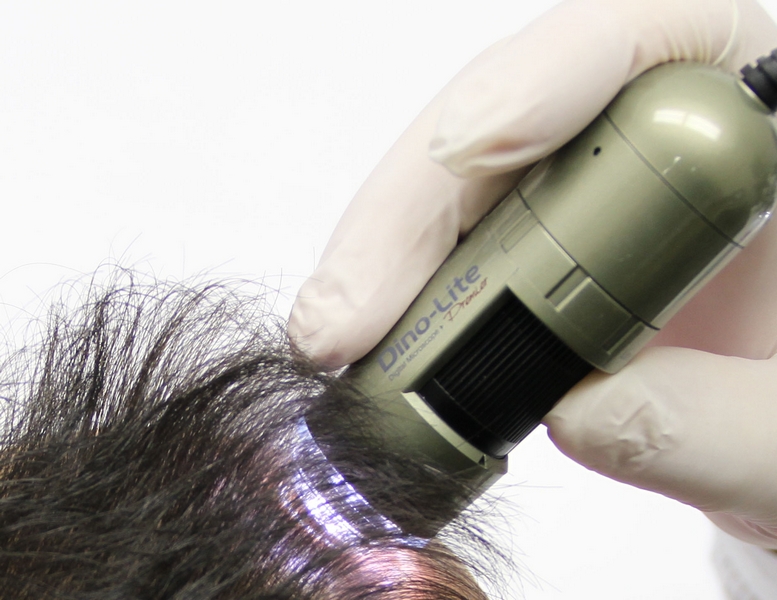

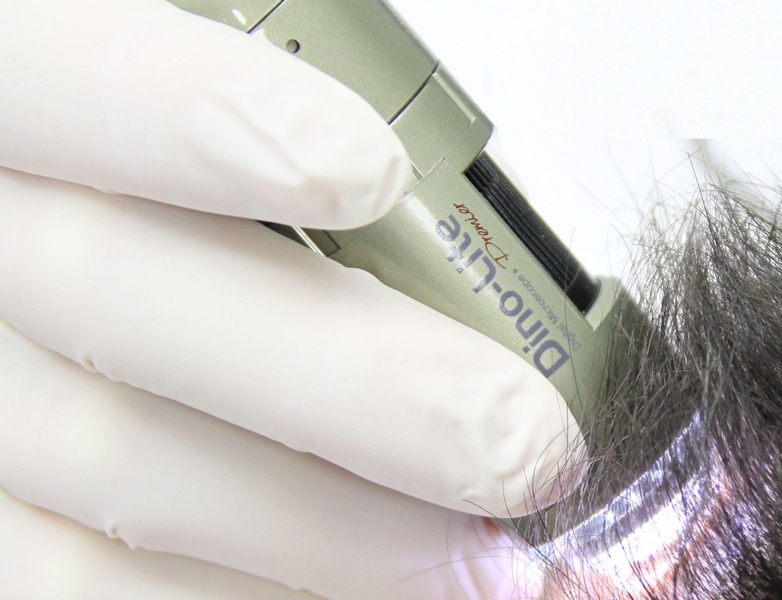

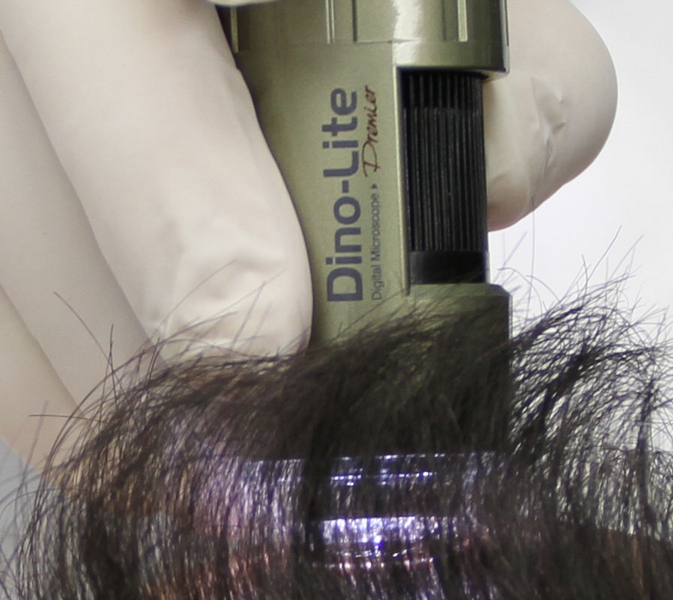

The Dino-Lite TrichoScope Basic (MEDL3H) is a great instrument for the examination of the human scalp and for hair analysis, e.g. for hair loss research. The special cone shaped cap allows easy separation of hair on the human head. With the high magnification of up to 200 times a single hair can be viewed with great detail.

  • VGA (640x480) Resolution
  • Basic model for Trichoscopy
  • Up to 200x magnification
  • Medical Device Class 1

USB-2MeasurementMag-10-70-200

VGA-res8-leds




Additional Info

  • Resolution: 640x480pixels (VGA)
  • Magnification: 10x ~ 70x, 200x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: Medical Device Class 1 – According to Directive 93/42/EEC modified 2007/47/EC
  • Package contents: Microscope, Carry pouch, Software CD, Calibration target, User manual
